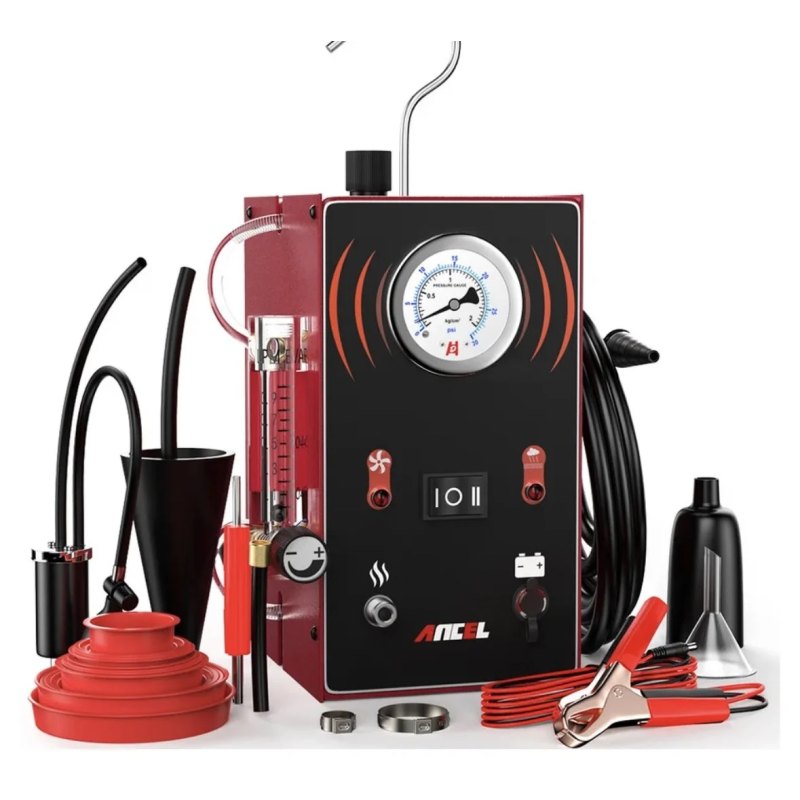

Ancel S300 Smoke Leak Tester

What is the ANCEL S300 Smoke Leak Detector? What does it do?

Smoke leak testing is an essential technology used to detect leaks in various pipe systems of vehicles, including the intake system, exhaust system, and fuel tank. Developed for this purpose, the ANCEL S300 stands out as a device with superior features for EVAP gas leak detection and fuel pipe diagnostics. It is suitable for both professional and universal vehicles.

Features and Advantages of ANCEL S300:

Wide Vehicle Support: The ANCEL S300 offers the ability to test pipe systems in different vehicle types, such as cars, motorcycles, off-road vehicles, commercial vehicles, ATVs, and boats. This allows obtaining reliable results in various vehicles.

Powerful and Easy to Use: The ANCEL S300 operates with its integrated air pump, eliminating the need for another air machine. It provides smoke output in just 30 seconds after being connected to 12V power. With its user-friendly interface, you can efficiently manage the testing process.

Advanced Technology: The device is equipped with advanced technology to work on the EVAP system. This enables more precise detection of gas leaks and pipe system issues in the vehicle.

Automatic Protection System: The ANCEL S300 features an automatic protection mode in cases of overheating or extreme cold. When the operating temperature exceeds 75 degrees or drops below -20 degrees, the device activates the protection mode and alerts the user.

How to Perform a Leak Test Using the Device?

• Performing a leak test with the ANCEL S300 is quite simple. Here are the step-by-step instructions:
• Fill the device with 20 ml of baby oil. Avoid adding more than the specified amount and regularly check the oil level.
• Connect the device to 12V power and turn it on. The device will fill the pipes with smoke within 30 seconds.
• During this time, observe any leakage points in the pipe systems. If there is any leak, the device will detect it.

Important Notes When Using the Device:

• Don't forget to add 20 ml of baby oil to the device during the first use and regularly check the oil level.
• It is important to change the device's oil at regular intervals.
• Avoid running the device for more than 8 minutes at a time and provide rest periods in between.
• The surface of the device may become hot during operation, so be careful when touching it.
• When separating the pipes, remember to close the other sides with a plug.

Package Contents:

The package of the ANCEL S300 Smoke Leak Detector includes the following parts:

• Power cable
• Funnel
• Hook
• User manual
• Air intake bag
• Adapter cone
• Rubber stopper
• Smoke distribution hose

The ANCEL S300 Smoke Leak Detector is an important device with its wide vehicle support, ease of use, advanced technology, and automatic protection system. By using this device, you can quickly and accurately detect problems in the pipe systems of vehicles, conducting effective leak tests. It is important to remember the key points to increase efficiency and extend the device's lifespan when conducting smoke leak tests.
